Lasko has developed key engineering design changes and implemented them into our new locking screw mechanism. This allows safe and secure assembly of the pole to the base of your pedestal fan. below are the easy steps to follow when assembling this part.

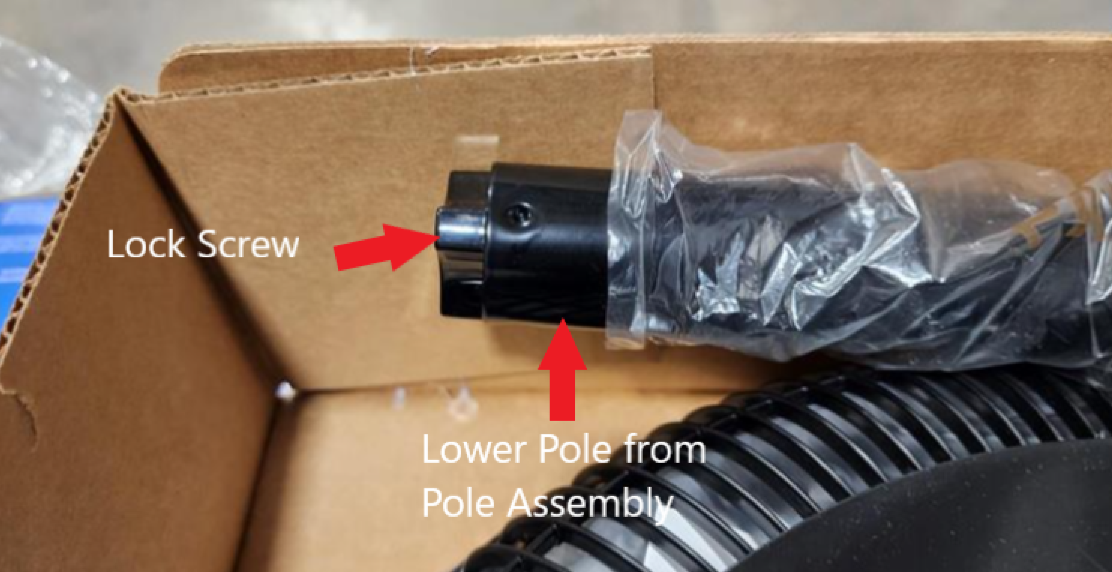

1. Locate the pole assembly and identify the lower pole half, and the lock screw tightened on the bottom.

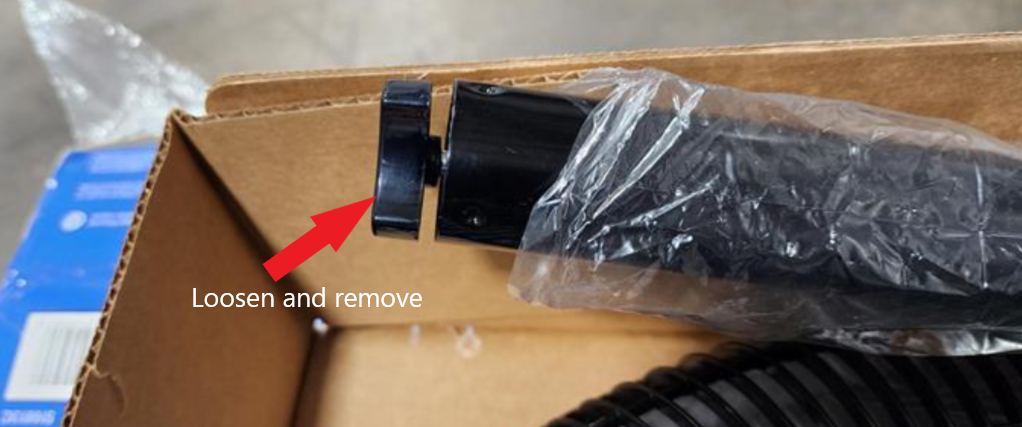

2. Loosen, and remove the lock screw from the bottom of the pole assembly.
3. Place the pole into the base of the fan using the center hole for placement. Be sure the locking screw is not assembled to the base, or pole at this point.

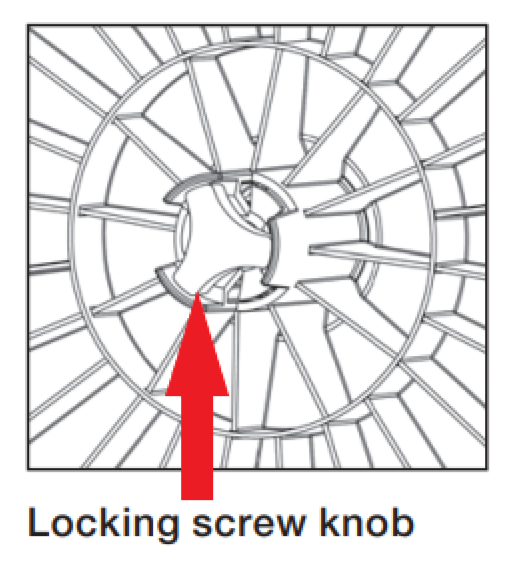

4. Turn the base upside down while the pole is assembled into the base. The lock screw is then assembled from the bottom of the base, through the hole in the center of the base, and tightened back into the bottom of the pole, as shown below.
Need help assembling the rest of your fan, click here for our tutorial video!
